Zero Phase CT
ITEM |
PROPERTY |
CONDITION |
OUTPUT VOLTAGE |
E2 : 17mV min. |
 : 25mA, R : 1§Ú |
REMAINENCE MAGNETISM |
¥å : ¡¾10% max. |
Variation
ratio of output voltage before to after passing the DC 10A. |
THERMAL
PROPERTY |
¥åt : ¡¾10% max. |
Standard
20¡É -20~80¡É Output voltage ratio. |
PERMISSIBLE
UNBALANCE |
V2 : 10mV max. |
Ampere Flame ¡¿ 6(A), R : 1§Ú. |
PULSE WIDTH |
tp : 5m sec min. |
:
1~40A, R : 1§Ú |

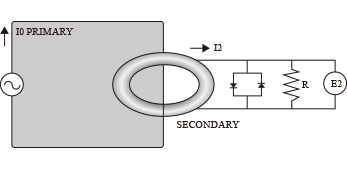

| 1.Output(E2) : Measured after demagnetization. |
 |

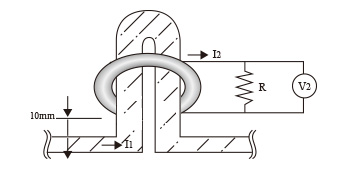

| 2.Permissible Unbalance (V2) - RMS : Peak effective value measured by turning ZCT round the primary winding jig |
 |

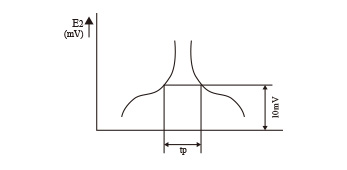

| 3.Pulse Width Property. |
|

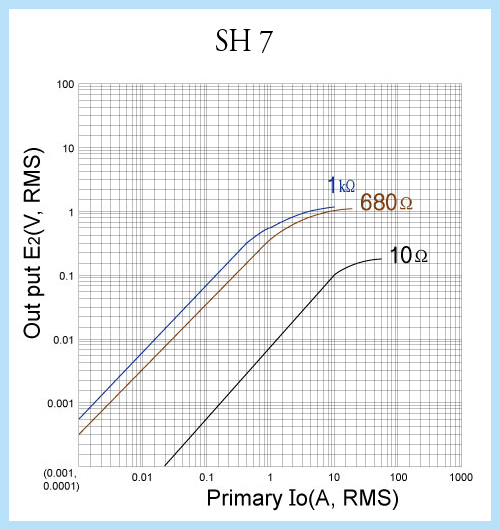

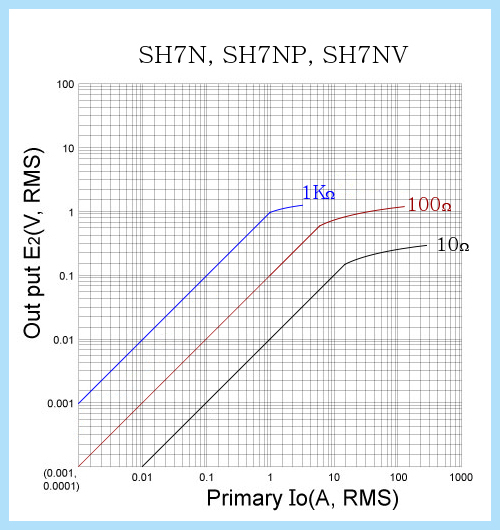

| 4. Graph of output. |
|

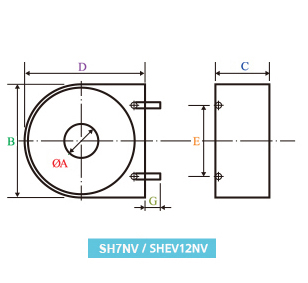

Model |
¨ªA(Min.) |
B(Max.) |
C(Max.) |
D(Max.) |
E |
F |
G(¡¾0.5) |
ELB Rating |
6.2 |
15.3 |
7.2 |
16.3 |
10.0 |
6.8 |
3.0 |
15A, 30A | |
6.8 |
17.0 |
7.2 |
18.10 |
10.0 |
7.5 |
3.0 |
15A, 30A | |
5.8¡¾0.2 |
17.5 |
8.2 |
19.0 |
10.0 |
3.0 |
15A, 30A | ||
6.8 |
17.1 |
6.9 |
20.2 |
3.0 |
9.5 |
3.0 |
15A, 30A |
|
9.8 |
22.0 |
8.3 |
25.7 |
3.1 |
3.0 |
50A, 100A |
Model |
A(¡¾0.3) |
B(¡¾0.3) |
C(¡¾0.3) |
D(¡¾0.3) |
E |
F(¡¾0.3) |
G(¡¾0.3) |
ELB Rating |
30 |
40.5 |
9.6 |
74.2 |
12 |
20 |
50 |
100A | |
36 |
47 |
13.5 |
83.2 |
27 |
63 |
225A |
Model |
¨ªA(Min.) |
B(Max.) |
C(Max.) |
D(Max.) |
E |
ELB Rating |
6.3 |
15.2 |
6.3 |
17.7 |
5.5 |
15A, 30A |
|
6.9 |
15.2 |
7.7 |
17.7 |
15A, 30A |
||
6.8 |
17.0 |
7.5 |
19.6 |
5.5 |
15A, 30A |
|
9.0 |
22.0 |
7.8 |
25.1 |
6.2 |
30A, 50A |
|
9.2 |
19.0 |
7.8 |
21.0 |
6.2 |
50A, 100A |
|
9.2 |
19.0 |
7.8 |
21.0 |
6.2 |
50A |
|
10.0 |
22.0 |
7.9 |
24.0 |
6.2 |
50A, 100A |
|
14.4 |
28.3 |
9.8 |
31.0 |
6.2 |
100A |
|
13.6 |
28.3 |
8.4 |
30.8 |
6.2 |
100A |
|
15.3 |
30.0 |
9.1 |
32.6 |
6.2 |
100A |
Model |
¨ªA(Min.) |
B(Max.) |
C(Max.) |
D(Max.) |
ELB Rating |
FIG |
17.1 |
36.3 |
9.3 |
37.2 |
100A, 125A |
1 |
|
26.6 |
51.8 |
14.2 |
51.8 |
225A, 250A |
1 |
|
48.6 |
82.6 |
21.5 |
82.7 |
400A |
1 |
|
48.6 |
82.6 |
28.0 |
82.7 |
600A, 800A |
1 |
Model |
¨ªA(Min.) |
B(Max.) |
C(Max.) |
D(Max.) |
E |
ELB Rating |
FIG |
8.3 |
20.0 |
9.1 |
23.5 |
9.8 |
50A, 100A |
2 |
|
10.0 |
22.3 |
8.2 |
25.2 |
9.2 |
50A, 100A |
2 |
|
10.0 |
22.3 |
8.2 |
25.2 |
9.2 |
50A, 100A |
2 |
|
13.3 |
28.5 |
9.2 |
31.5 |
13.4 |
100A |
2 |
-
¡¤Customers' own electrical requirements also can be satisfied by utilizing our standard dimensions.
¡¤Both horizontal and vertical PCB mounting types are available.
