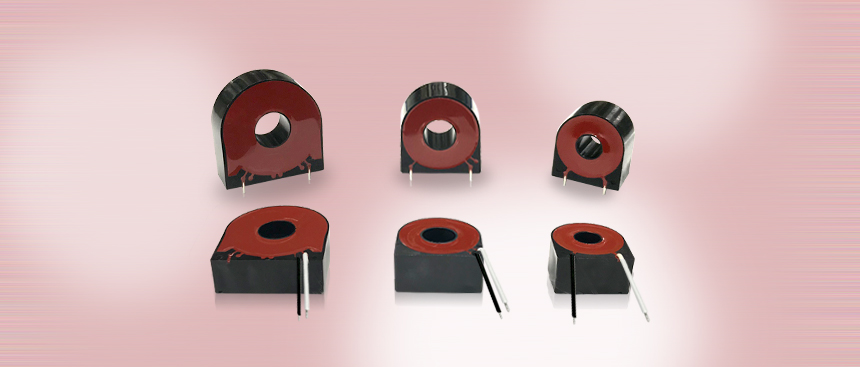

DC IMMUNE Current Transformer
Model |
Current Ratio |
Rating Current |
PHASE SHIFT(min) |
Ratio Error |
HDC-2W, HDC-2P |
2,500 : 1 |
40A |
Max. 12' |
Max. 0.2% |
HDC-3W,HDC-3P |
2,500 : 1 |
80A |
Max. 12' |
Max. 0.2% |
HDC-4W,HDC-4P |
2,500 : 1 |
120A |
Max. 12' |
Max. 0.2% |
APPLICATION |
FEATURES |
¡¤ DC immune digital watt-hour meter ¡¤ Accurate measurement even at the AC/DC components
|
¡¤ Phase difference ZERO by temperature change ¡¤ Excellent linearity in the AC/DC factor ¡¤ High accuracy in the minimum current |
| 1.Output(E2) : Measured after demagnetization. |
 |
| 2. GRAPH OF OUTPUT |
Model |
¨ªA(Min.) |
B(Max.) |
C(Max.) |
D(Max.) |
8.7 |
25.6 |
17.0 |
27.5 |
|
12.0 |
32.0 |
18.3 |
33.0 |
|
12.8 |
37.5 |
14.2 |
38.7 |
Model |
¨ªA(Min.) |
B(Max.) |
C(Max.) |
D(Max.) |
Output E |
F |
G(¡¾0.5) |
H |
8.7 |
25.5 |
16.8 |
27.4 |
15.0 |
19.0 |
3.0 |
15.5 |
|
12.0 |
32.0 |
18.3 |
33.0 |
22.8 |
26.5 |
3.0 |
16.7 |
|
12.8 |
37.5 |
14.1 |
38.8 |
25.0 |
33.0 |
3.0 |
13.0 |

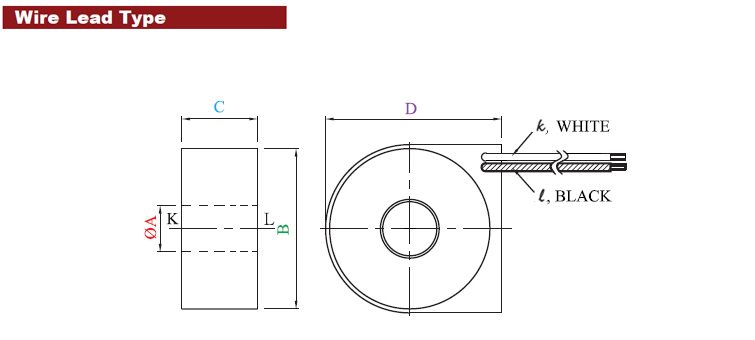

- Customers' own electrical requirements also can be satisfied by utilizing our standard dimensions.

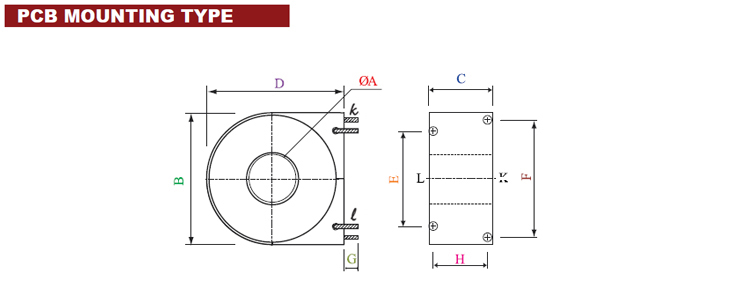

- Both horizontal and vertical PCB mounting types are available.
