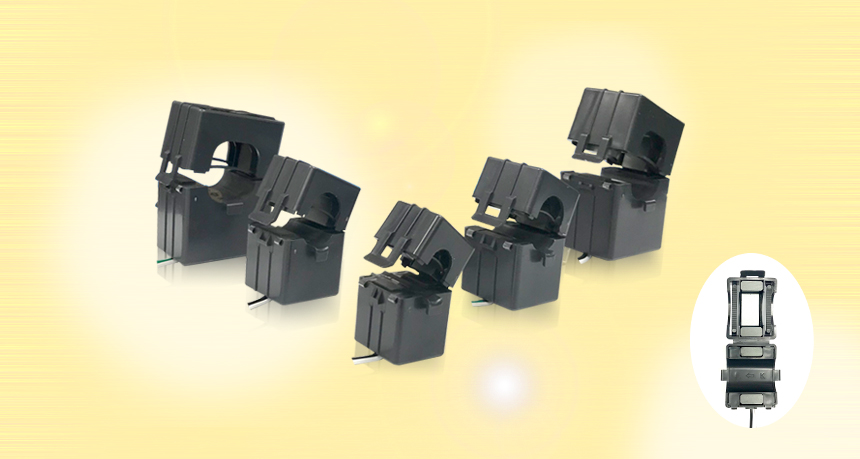

SPLIT TYPE Current Transformer



APPLICATION
FEATURES


-Uninterrrupt Power Supply in Building
(office,hospital, data processing room, information center etc...)


-Electricity Efficiency System


-Total Smart Grid


-Sub-Metering Accurate Measurement


-Solar Inverters / Wind Turbine System




-Excellent Sensitivity at the low Current level

-Execllent Stability and Linearity




** GRAPH OF OUTPUT.

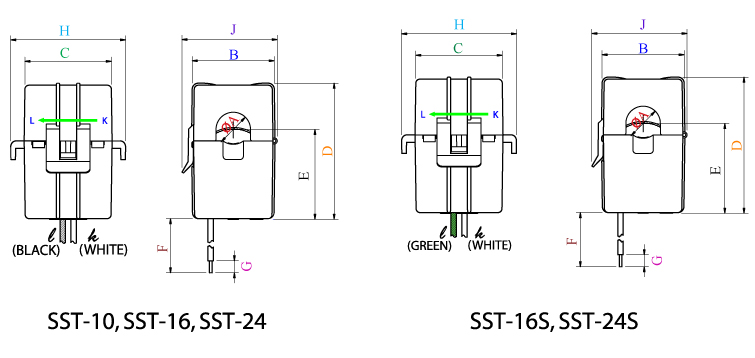

Model
A
B
C
D
E
F
G
H
J

10
0.394"

24.6
0.969"
26.2
1.031"
40.7
1.602"
26.8
1.055"
210
8.268"
6
0.236"
34.0
1.339"
28.8
1.134"

16
0.630"

31.0
1.220"
31.6
1.244"
46.7
1.839"
30.7
1.209"
200
7.874"
6
0.236"
39.2
1.543"
35.5
1.398"

24
0.945"

46.6
1.835"
33.8
1.331"
65.4
2.575"
39.8
1.567"
205
8.071"
8
0.315"
41.5
1.634"
51.1
2.012"



- Customers' own electrical requirements also can be satisfied by utilizing our standard dimensions.
