AC DC Current Sensor

#Hall Closed-Loop Type

Current sensor

DC Sensor

  • 홈
  • DC Sensor

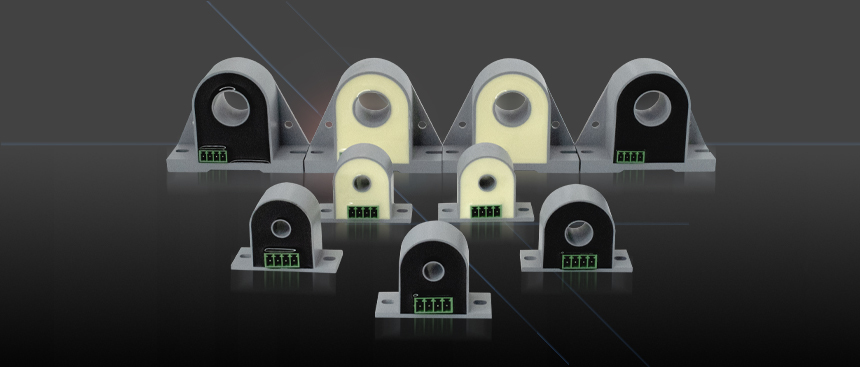

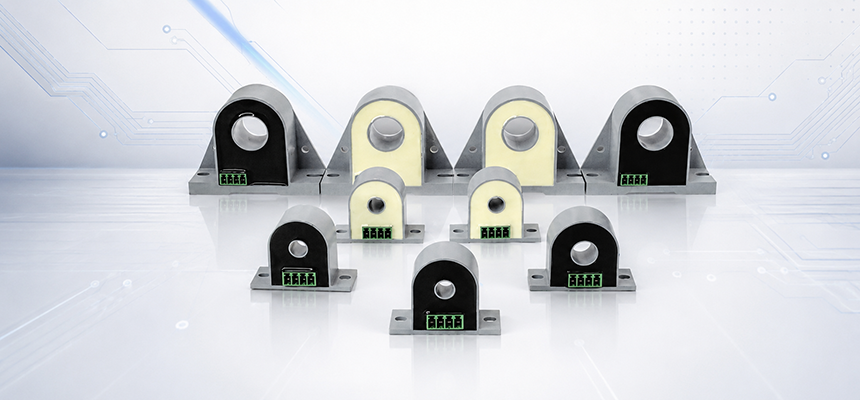

AC/DC Current Sensor

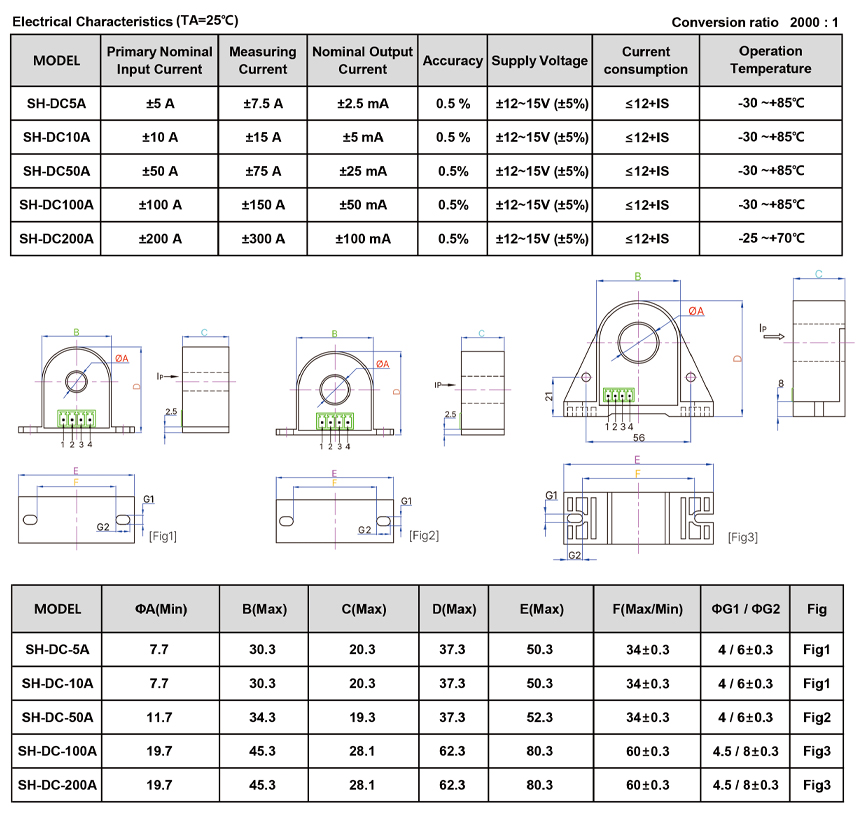

Electrical Characteristics (TA=25°C)
Conversion ratio 2000 : 1
MODEL
Primary Nominal
Input Current
Measuring
Current
Nominal Output
Current
Accuracy
Supply Voltage
Current
consumption
Operation
Temperature
SHCA - 5A
±5 A
±7.5 A
±2.5 mA
0.5 %
±12~15V (±5%)
≤12+IS
-30 ~+85°C
SHCA - 10A
±10 A
±15 A
±5 mA
0.5 %
±12~15V (±5%)
≤12+IS
-30 ~+85°C
SHCA - 50A
±50 A
±75 A
±25 mA
0.5 %
±12~15V (±5%)
≤12+IS
-30 ~+85°C
SHCA - 100A
±100 A
±150 A
±50 mA
0.5 %
±12~15V (±5%)
≤12+IS
-30 ~+85°C
SHCA - 200A
±200 A
±300 A
±100 mA
0.5 %
±12~15V (±5%)
≤12+IS
-25 ~+70°C

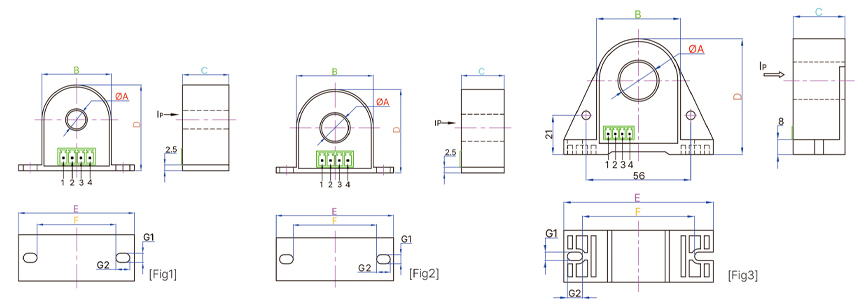

CT Sensor 도면



MODEL
ΦA(Min)
B(Max)
C(Max)
D(Max)
E(Max)
F(Max/Min)
ΦG1 / ΦG2
Fig
SHCA - 5A
7.7
30.3
20.3
37.3
50.3
34±0.3
4 / 6±0.3
Fig1
SHCA - 10A
7.7
30.3
20.3
37.3
50.3
34±0.3
4 / 6±0.3
Fig1
SHCA - 50A
11.7
34.3
19.3
37.3
52.3
34±0.3
4 / 6±0.3
Fig2
SHCA - 100A
19.7
45.3
28.1
62.3
80.3
60±0.3
4.5 / 8±0.3
Fig3
SHCA - 200A
19.7
45.3
28.1
62.3
80.3
60±0.3
4.5 / 8±0.3
Fig3




표준 치수이외에도 고객이 원하는 특별한 치수도 제작 가능합니다..
